Advanced rotary cutting dryers for fluid content reduction of drilled solids to below 5% in the drilling industry
EST specializes in the design, engineering and manufacturing of high quality decanter-centrifuge based systems applicable to a broad spectrum of solids control and separation applications.

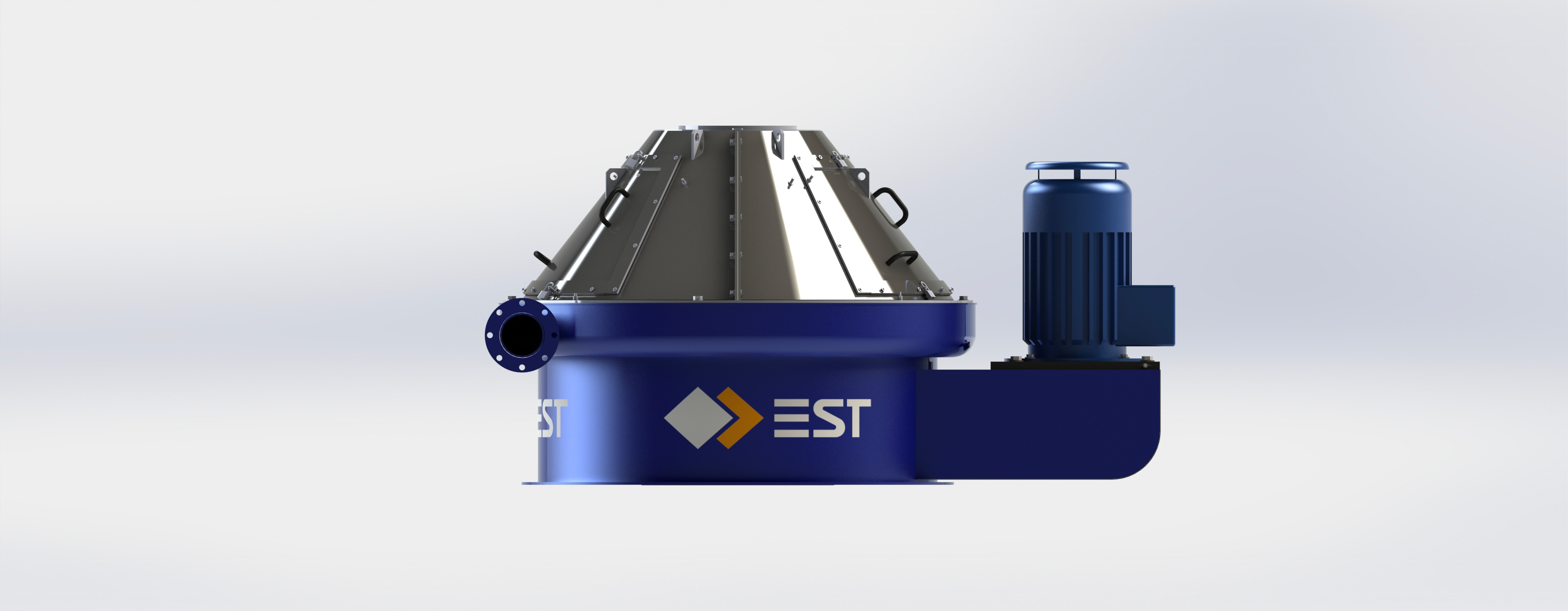

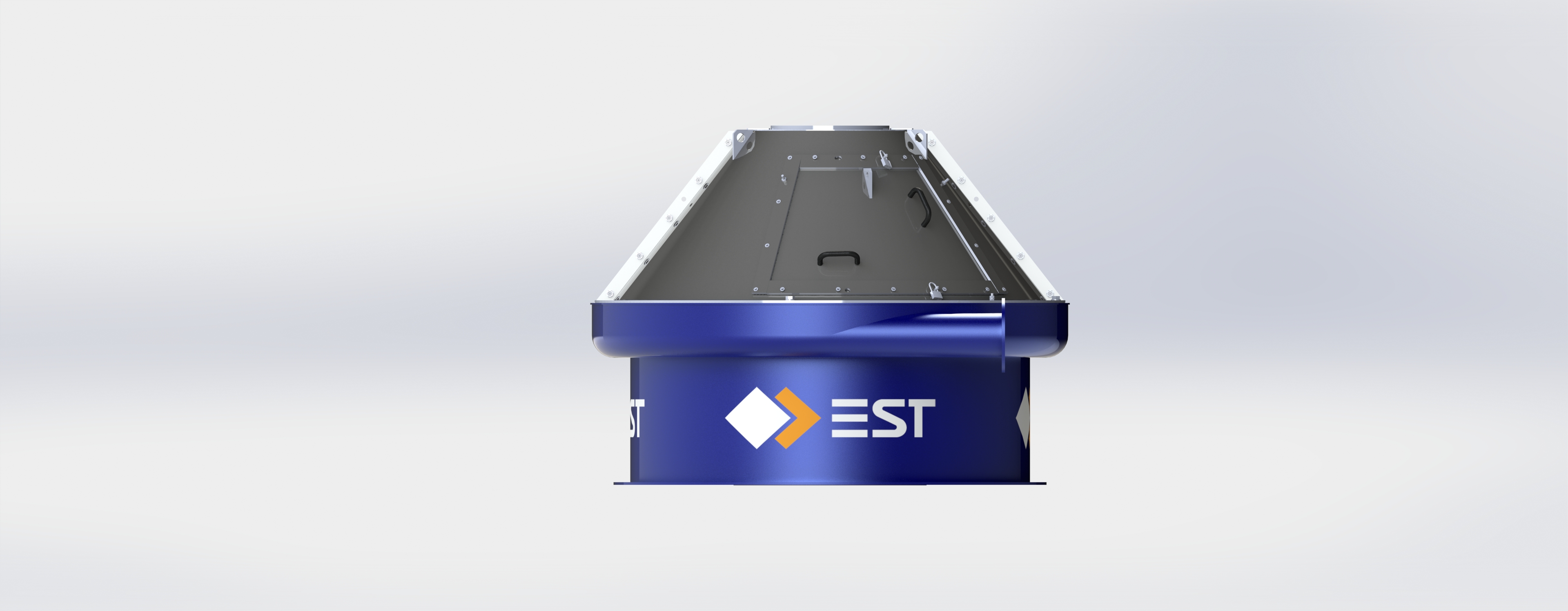

The EST Rotary Cutting Dryers are designed for fluid content reduction of drilled solids to below 5%, with intelligent operations through remote monitoring. They feature a 1.3 sq.mtr. conical screen with adjustable scrapers, available in wide range from 0.1mm to 2mm.
Available in low profile configuration with bottom discharge or with dual side discharge augers. ATEX zone 1 certified for -20 to +55°C ambient.
| Description | Low Profile RCD | Side Auger RCD |
|---|---|---|
| Maximum Capacity | 80 m³/h (350 GPM) | 80 m³/h (350 GPM) |
| Maximum G Force | 515 G | 515 G |
| Screen Area | 1.3 sq.mtr. (14 sq.ft.) | |
| Screen Size | 0.1–2 mm (150–10 US Mesh) | |
| Drive Motor | 55 kW (75 HP) | |
| Auger Motors | N.A. | 2 × 4 kW (5.5 HP) |
| Gearbox Ratio | 80:1 | |
| Power | 460V/60Hz or 380V/50Hz | |
Our technical team is ready to provide detailed specifications and customized solutions for your specific requirements.
